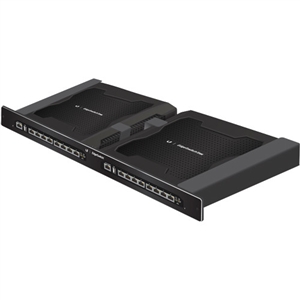

ES-16XP EdgeSwitch XP 16-Port Advanced Gigabit PoE Managed Switch by Ubiquiti Networks

With the ES-16XP EdgeSwitch XP 16-Port Advanced Gigabit PoE Managed Switch from Ubiquiti Networks users benefit from passive PoE support and 16 ports of Gigabit Ethernet connectivity. With support for passive Power over Ethernet, IP phones, access points, and other PoE compatible devices can draw their power from the network eliminating the need for separate power sources. This Ubiquiti Networks switch features the EdgeSwitch XP configuration interface allowing PoE power to be administered on a per port basis. The ES-16XP supports 24V/48V passive PoE power along with a total power budget of up to 300W ensuring multiple connected devices have the necessary power to function properly. This EdgeSwitch XP model features dual EdgeSwitch XP 8-port switches in a rack-mountable, 1U form factor supporting up to 16 devices.

Model ES-16XP by Ubiquiti Networks

Dimensions: 480 x 44.5 x 186 mm

Weight: 3.95 kg

Mounting: Integrated 1U Rack-Mount

Power Input: 110-120VAC / 210-230VAC

Max. Power Consumption: 150 W

PoE Out Voltage Range: 45-48VDC / 22-24VDC

Max. PoE Wattage Per Data Port: 11.5 W (24 V), 23 W (48V)

ESD Rating: 24 kV Air / 24 kV Contact

PoE Method: Passive

Button: Reset

USB Port: 2.0 Type A (Reserved for Future Use)
