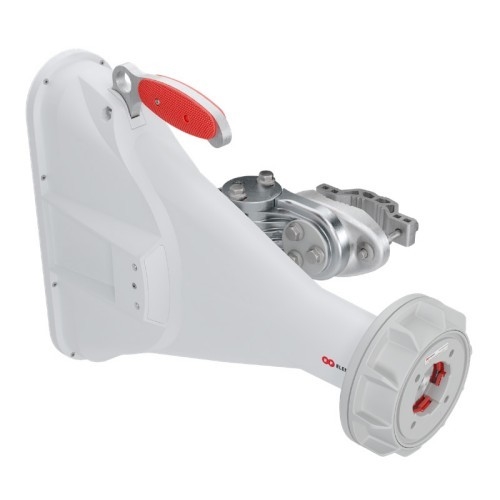

HG3-TP-A60 5GHz Asymmetrical Horn TwistPort 60° by RF Elements

The RF elements HG3-TP-A60 combines the best of both worlds - high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in elevation plane, greatly improving coverage planning options. 60° Asymmetrical Horn TP Antenna exceeds the traditional patch sector antenna thanks to high stability of gain and radiation pattern in the whole band of operation. Outstanding noise rejection and precision of radiation pattern favors 60° Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites.

Model HG3-TP-A60

Antenna Connection: TwistPort™ - Quick Locking Waveguide Port

Antenna Type: Horn

Materials: UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel

Environmental: IP55

Pole Mounting Diameter: 22-80 mm

Temperature: -35°C to +55°C (-31°F to +131°F)

Wind Survival: 160 km/hour

Mechanical Adjustment: ± 25° Elevation, ± 20° Azimuth

Weight:

- 4.8 Kg / 10.5 lbs – single unit

- 6.5 Kg / 14.3 lbs – single unit incl. package
