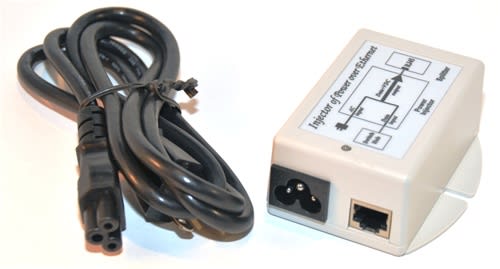

POE Power Supply 12, 18, 24 or 48vDC by Pacific Wx

Our Price: $29.95

Sale Price: $24.95

AVAILABILITY: IN STOCK NOW may ship from other location
Product Code: PAC-POE

This PoEi injector is an advanced 802.3af (at 48vDC) compliant power supply / power inserter. The power supply is autoranging on the input and has a regulated voltage output. It has overload and short circuit protection in addition to Ethernet surge suppression built-in. The POE-xxi is not a proprietary unit. It will function with any equipment which is compliant with the IEEE 802.3af POE standards. The power is supplied on Ethernet pins 4/5 (V+) and 7/8 (V-). The POEi comes complete with a standard North American 115VAC 3 prong power cord. International cords are available upon request. Using power over Ethernet to power remote devices has several advantages including;

• The power supply can be centrally located where it can be attached to an uninterruptible power supply.
• The user has the ability to easily power on reset the attached equipment from a remote location.
• There is no need to run additional power cabling to the device as power can be supplied over the CAT5 ethernet cable.
• Choose your DC voltage from the drop down box.

These are all also available with auto-detect mode, at a slightly higher price. Please call or email us with any additional questions that you might have.

Model POE-48i, POE-24i, POE-18i, POE-12i, POE-xxi

Specifications: 48VDC @ .35A POE Power Supply / Inserter (Includes AC Power Cord) Specifications – POE-xxi Power Supply/Injector Input Voltage 90 – 264VAC @ 47 – 63Hz Input Current 0.3A @ 120VAC 0.2A @ 230VAC Inrush Current <15A peak @ 120VAC <30A peak @ 230VAC Efficiency 70% Min. Output Voltage POE-48i 48VDC @ 0.35A POE-24i 24VDC @ 0.7A POE-24iR 24VDC @ 0.7A POE-18i 18VDC @ 0.9A POE-12i 12VDC @ 1.3A Output Ripple 1% Max Switching Frequency 200KHz Typ Line Regulation +/- 0.5% Load Regulation +/- 1% Operating Temperature -10 to +60 deg C Storage Temperature -20 to +85 deg C Operating Humidity 5% to 90% non condensing Size (L x W x H) 3.25” x 3” x 1.5” (83 x 76 x 38mm) Weight 5.2oz (147gm) AC Connector IEC-320 C6 (Supercom SC-14) Data IN Conn. RJ45 Shielded Socket Data/POE OUT Conn. RJ45 Shielded Socket LED Green

Features
Features: • “Carrier Class” Power Over Ethernet System • Auto Ranging Power Supply/ Inserter • Built-in Ethernet Surge protection to prevent equipment damage • Overload and Short Circuit Protection • Minimum Cross Talk and Insertion Loss • Advanced Switching Technology – Runs cool • Complies with IEEE 802.3af POE Standard (for 48vDC version) • FCC and CE Approved • Installation Schematic on Label
