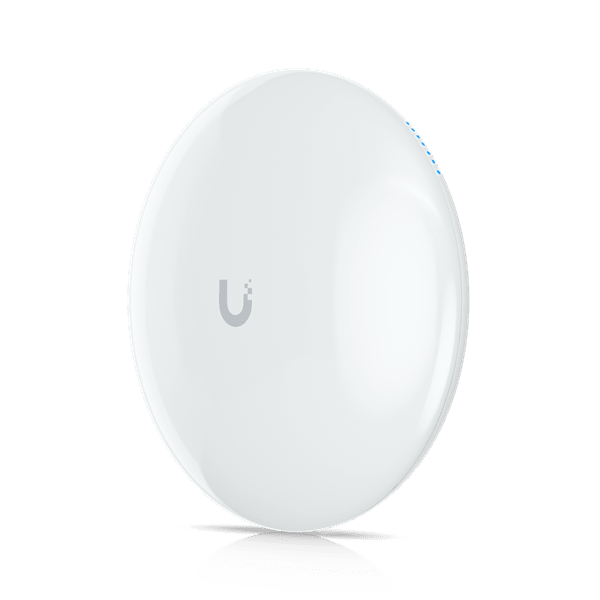

UDB-PRO Wifi bridging 5GHz, POE Ubiquiti Networks

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.

Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link

(2) GbE ports with (1) PoE output for PoE devices

Powered using PoE/PoE+*

Pole mounting

Weatherproof (outdoor exposed)

Sold as a single unit

Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.

*PoE adapter included. PoE+ input required for PoE passthrough.

Model UDB-PRO by Ubiquiti Networks

Mechanical
Dimensions	Ø189.5 x 64.3 mm (Ø7.4 x 2.5")
Weight	Without mount: 431 g (1 lb) With mount: 515 g (1.1 lb)
Enclosure material	UV-resistant polycarbonate
Mount material	UV-stabilized polycarbonate, stainless steel
Pole mount diameter	20–53.1 mm (0.8–2.1") on pipe outer diameter
Wind loading	69 N at 200 km/h (15.5 lbf at 125 mph)
Weatherproofing	IPX6
Hardware
Networking interface	(2) GbE RJ45 ports
Management interface	Ethernet WiFi
PoE interface	(1) PoE in (PoE output not used) (1) Passive PoE output
Power method	PoE PoE+ (Required for PoE output)
Power supply	UniFi PoE switch 48V, 0.32A PoE adapter (Included)
Supported volatage range	42.5–57V DC
Max. power consumption	9W
Max. TX power 2.4 GHz 5 GHz 6 GHz	– 25 dBm –
Max. data rate 2.4 GHz 5 GHz 6 GHz	– 867 Mbps (BW80) –
MIMO 2.4 GHz 5 GHz 6 GHz	– 2 x 2 –
Antenna gain 2.4 GHz 5 GHz 6 GHz	– 19 dBi –
Antenna	Internal
Range	5+ km
LEDs	Power, Ethernet, (4) signal strength
Button	Factory reset
Mounting	Pole (Included)
Ambient operating temperature	-40 to 60° C (-40 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/n/ac
Wireless security	WPA2 AES (Always On)
Operating frequency* US/CA Worldwide	U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region.
Channel bandwidth	20/40/80 MHz
Max. conducted TX power	25 dBm (Combined)
Modulation	BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
