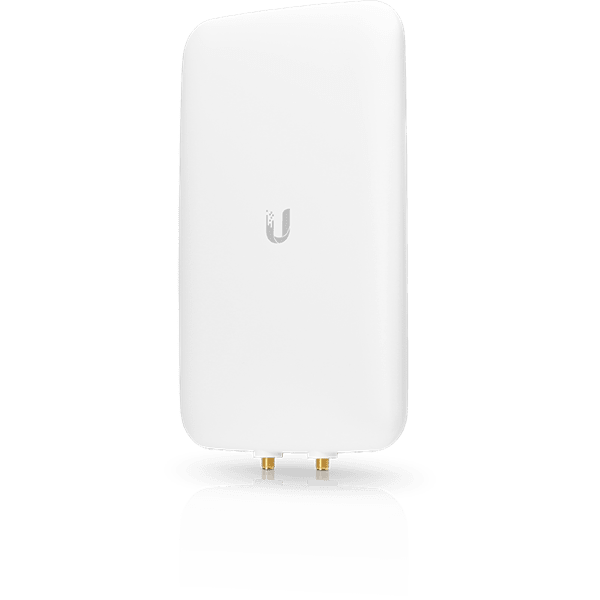

UMA-D Direction Antenna for UAP-AC-M by Ubiquiti

-->

Home > By Mfr > Ubiquiti Networks > UniFi >

UMA-D UniFi Dual-Band Directional Antenna for UAP-AC-M by Ubiquiti Networks

UMA-D Direction Antenna for UAP-AC-M by Ubiquiti

Additional Pictures and Information Below - Click to View

Download Datasheet Here

Our Price: $98.95

AVAILABILITY: IN STOCK NOW may ship from other location
Product Code: UMA-D

Qty:

Description

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.

Dual-Band, Dual-Polarity Optimized for 802.11ac
High Efficiency Directional Radiation Pattern
Three-Axis Ball Joint Mount for Precise Aiming

Model UMA-D by Ubiquiti Networks

Features

UMA-D
Dimensions	201.312832.5 mm
Weight	400g without mount 480g with mount
Enclosure Characteristics	Outdoor UV Stabilized Plastic
RF Connections	(2) RP-SMA
Supported Frequency Range	2.4-2.5GHz, 5.1-5.9GHz
2.4GHZ BAND
Gain	10dBi
HPOL Beamwidth	90
VPOL Beamwidth	90
Elevation Beamwidth	90
Maximum VSWR	2:1
Polarization	Dual-Linear
Cross-Pol Isolation	25dB
5GHZ BAND
Gain	15dBi
HPOL Beamwidth	45
VPOL Beamwidth	45
Elevation Beamwidth	45
Maximum VSWR	2:1
Polarization	Dual-linear
Cross-Pol Isolation	30dB
