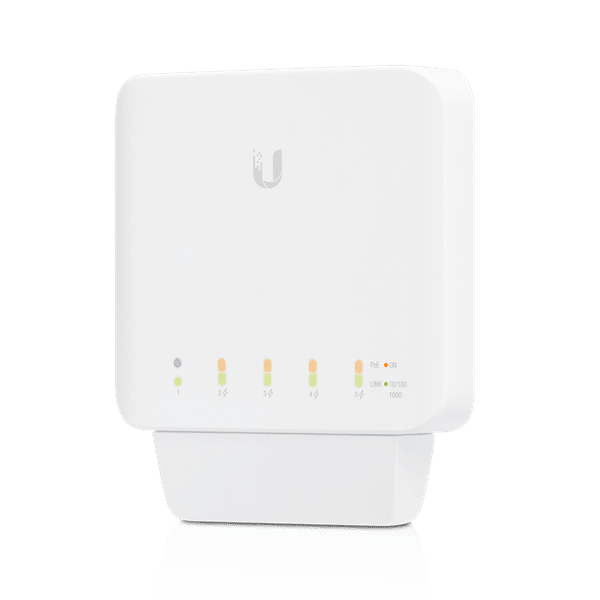

USW-FLEX UniFi® 5-Port Layer 2 Gigabit Switch With Auto-Sensing 802.3af PoE by Ubiquiti Networks

Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options.

Model USW-FLEX SPECIAL PURCHASE by Ubiquiti Networks

General

Dimensions: 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10")
Weight: 230g (8.11 oz)
Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports
Management Interface: Ethernet In-Band
Power Method (Port 1):
- PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-)
- PoE Mode 2: 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
- PoE Mode 3: 54V / 1.1A PoE Adapter
PoE Out (Ports 2-5): 802.3af (Pins 1, 2+; 3, 6-)
Max. Power Consumption (Excluding PoE Output): 5W
Supported Voltage Range:
- 802.3af Mode: 44V - 57V
- 802.3at/bt Mode: 50V - 57V
LEDs:
- System: Status
- RJ45 Data Ports: PoE; Link/Speed/Activity
ESD/EMP Protection: ± 16kV Air, ± 16kV Contact
Operating Temperature:
- 46W PoE Output: -40 to 55° C (-40 to 131° F)
- 25W PoE Output: -40 to 65° C (-40 to 149° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Download Datasheet Here
