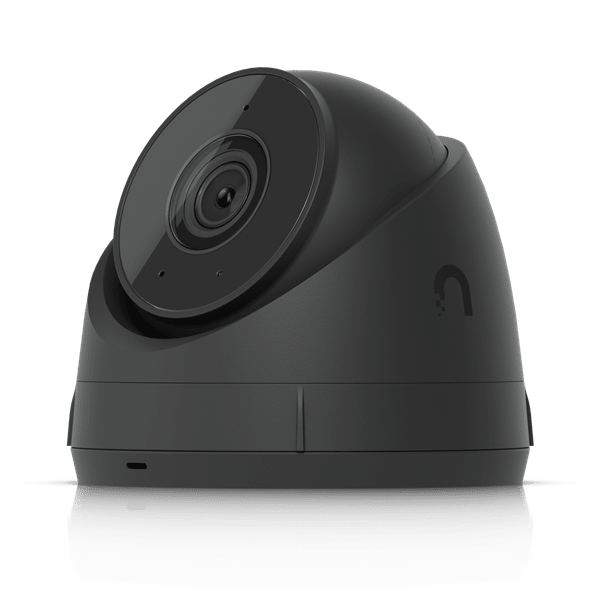

UVC-G5-TURRET-ULTRA-B Camera by Ubiquiti Networks

Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.

BLACK version - also available in WHITE

2K (4MP) video resolution

Ultra-wide viewing angle (102.4°)

30 m (98 ft) IR night vision

AI event detections

Record audio with an integrated microphone

Connect and power using PoE

Weatherproof (outdoor exposed)

Model UVC-G5-TURRET-ULTRA -B (Black) by Ubiquiti Networks

UVC-G5-TURRET-ULTRA Installation Video

Mechanical
Dimensions	Without mount: Ø90 x 152.5 mm (Ø3.5 x 6") With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7")
Weight	Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb)
Enclosure material	Aluminum alloy, polycarbonate
Mount material	Wall mount: polycarbonate Pole mount: aluminum alloy
Pole mount diameter	38–50 mm (1.5–2") on pipe outer diameter
Weatherproofing	IP66
Resistance	IK04
Optics
Sensor	5MP 1/2.7" CMOS
Lens	F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4
View angle	16:9 Wide: H: 99.7°, V: 51.9°, D: 121° 16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4°
Night mode	Built-in IR & white LED illumination with IR cut filter
IR distance	20 m (65 ft)
IR limitation	Keep distance from top/side ≥60 cm (2 ft)
Video
Resolution	4MP 2688 x 1512 (16:9)
Max. frame rate	30 FPS
System
Networking interface	10/100 MbE RJ45 port
Max. power consumption	14W
Power method	PoE+
Supported voltage range	37–57V DC
LEDs	R/G/B/W: link, activity Floodlight: 400 lm
Button	Factory reset
Mounting	Wall, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional, sold separately)
Ambient operating temperature	-30 to 45º C (-22 to 113º F)
Ambient operating humidity	0 to 90% noncondensing
Certifications	FCC, IC, CE
Audio
Microphone	Yes (Can be disabled)
Software
Web application	UniFi Protect
Mobile app	UniFi Protect iOS™ and Android™
