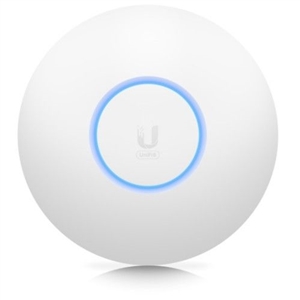

UniFi 6 Lite is a 2x2 WiFi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount UniFi 6 Lite horizontally in the ceiling to cover a high-density environment or mount it vertically on the wall to extend its range. UniFi 6 Lite has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories.
802.3af PoE; 48V, 0.32A PoE Injector Not Included Model U6-LITE-US
| Mechanical |
|---|
| Dimensions | Ř160 x 32.65 mm (Ř6.3 x 1.3") | | Weight | Without Mount: 300 g (10.6 oz)
With Mount: 315 g (11.1 oz) | | Enclosure Characteristics | Polycarbonate 110 and ADC12 Die Casting | | Mounting Characteristics | Polycarbonate, SGCC Steel | | Hardware |
|---|
| Processor Specs | 880 MHz MIPS 1004 KEc | | Memory Information | 256 MB | | Management Interface | Ethernet In-Band | | Networking Interface | (1) 10/100/1000 Mbps Ethernet RJ45 | | Buttons | Factory Reset | | LEDs | White/Blue | | Power Method | 802.3af PoE, Passive PoE (48V) | | Power Supply | 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included) | | Supported Voltage Range | 44 to 57VDC | | Max. Power Consumption | 12W | Max. TX Power
2.4GHz
5GHz |
23 dBm
23 dBm | MIMO
2.4GHz
5GHz |
2 x 2
2 x 2 | Throughput Speeds
2.4GHz
5GHz |
300 Mbps
1201 Mbps | Antenna Gain
2.4GHz
5GHz |
2.8 dBi
3 dBi | | Operating Temperature | -30 to 60° C (-22 to 140° F) | | Operating Humidity | 5 - 95% Noncondensing | | Certifications | CE, FCC, IC | | Software |
|---|
| Wi-Fi Standards | 802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 | | Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions | | BSSID | 8 per Radio | | VLAN | 802.1Q | | Advanced QoS | Per-User Rate Limiting | | Guest Traffic Isolation | Supported | | Concurrent Clients | 300+ | | Supported Data Rates (Mbps) |
|---|
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | | 802.11n (Wi-Fi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | | 802.11b | 1, 2, 5.5, 11 Mbps | | 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | | 802.11ac (Wi-Fi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) | | 802.11ax (Wi-Fi 6) | 6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
|
|
|
