60 GHz PtMP access point powered by Wave Technology. Max. total throughput: 5.4 Gbps (2.7 Gbps duplex) 30° sector coverage 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps) (1) 2.5 GbE and (1) 10G SFP+ WAN ports 24* client capacity: — Wave Pro (8 km link range) — Wave Long-Range (8 km link range) — Wave Nano (5 km link range) — Wave Pico (1.3 km link range) Integrated GPS & Bluetooth *FW version 3.3.0 and later
.
**Base station for other WAVE-xx client radios: -PICO, -MICRO, -PRO, -LR, -NANO, AF60-LR

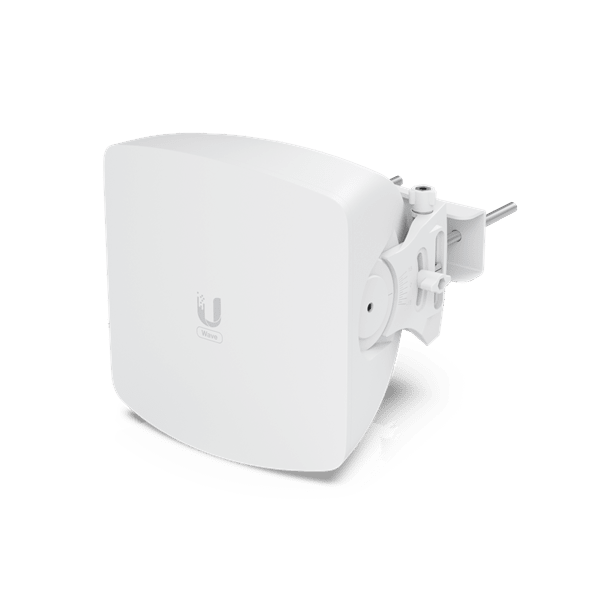

Model WAVE-AP by Ubiquiti Networks
| Mechanical |
|---|
| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4") | | Weight | 2.3 kg (5.1 lb) | | Enclosure material | Aluminum alloy, UV stabilized polycarbonate | | Pole mount diameter | 25 to 76 mm (1 to 3") on pipe outer diameter | | Wind loading | 98 N at 200 km/h (22 lbf at 125 mph) | | Weatherproofing | IPX6 | | Hardware |
|---|
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz | | Memory | DDR3L 512 MB | | Networking interface | (1) 2.5GbE RJ45 port (100/1000/2500)*
(1) 10G SFP+ port (1/10)
* Active only when SFP+ port is down. | | Max. power consumption | 24W | | Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only | | Power supply | 48V DC, 0.65A 2.5GbE PoE adapter (Included) | | Supported voltage range | 44–54V DC
22–27V DC | | GPS | Yes | | Button | Factory reset | | LEDs | Power, Ethernet, GPS | | Ambient operating temperature | -40 to 60° C (-40 to 140° F) | | Ambient operating humidity | 5 to 95% noncondensing | | Certifications | FCC, IC, CE | | Software |
|---|
| Operating mode | PtMP access point | | Ubiquiti specific features | Wave technology | | Services | UISP, ping watchdog, NTP client, SNMP | | Tools | Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*
*FW version 3.3.0 and later. | | Network | Bridge mode | | Application requirements | UISP: Version 1.5.7 and later | | System |
|---|
| Total throughput | 5.4 Gbps (2.7 Gbps duplex) | | Supported clients count | 24*
*FW version 3.3.0 and later. | | Max. range | Connecting to a Wave Pro: up to 8 km
Connecting to a Wave Long-Range: up to 8 km
Connecting to a Wave Nano: up to 5 km
Connecting to a Wave Pico: up to 1.3 km | | Encryption | WPA2-PSK (AES) | | RF |
|---|
| Operating frequency* | 57–71 GHz
*Depends on regulatory region. | | Channel bandwidth | 2160, 1080, 540* MHz
*FW version 3.3.0 and later. | | Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region. | | Modulation | 16QAM, QPSK | | Antenna gain | 24 dBi | | Polarization | Vertically linear | | Beamwidth | Azimuth: 3 dB 30°
Elevation: 3 dB 3° | | Electrical downtilt | 0° | | Back-Up RF |
|---|
| WiFi standard | 802.11ax (WiFi 6) | Operating frequency*
US/CA
Worldwide |
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
5150 - 5875 MHz
*Depends on regulatory region. | | Channel bandwidth | 20, 40, 80 MHz | | Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) | | Antenna gain | 12 dBi | | Cross-pol isolation | 10 dB | | Polarization | Dual-linear | | Beamwidth | Azimuth: 3 dB 35°
Elevation: 3 dB 60° | | Electric downtilt | 0° | | LEDs |
|---|
| Power | Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress | | Ethernet | Flashing white: Ethernet traffic detected
Flashing blue: SFP+ traffic detected | | GPS | Blue: receiving at least (4) GPS satellite signal |
|
|
|
 |
|
 |
|
