WAVE-AP-MICRO 60GHz PTMP Access Point 90* Beam 5Gbps Agg by Ubiquiti Networks

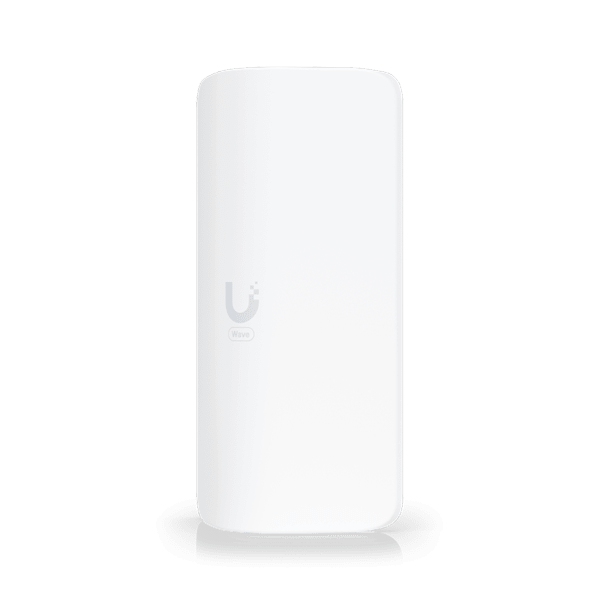

Ubiquiti WAVE-AP-MICRO 60GHz PtMP Access Point

Additional Pictures and Information Below - Click to View

Download Install Guide Here

Our Price: $499.95

AVAILABILITY: In stock soon. Order now to get in line. First come first served.
Product Code: WAVE-AP-MICRO

Qty:

Description

Technical Specs

Wide-coverage 60 GHz PtMP access point powered by Wave Technology.

Max. total throughput: 5 Gbps (2.5 Gbps duplex)

90° sector coverage

5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)

(1) 2.5 GbE WAN port

24* client capacity:

— Wave Pro (6 km link range)

— Wave Long-Range (6 km link range)

— Wave Nano (4 km link range)

— Wave Pico (0.9 km link range)

Integrated GPS & Bluetooth

*FW version 3.3.0 and later.

**Base station for other WAVE-xx client radios: -PICO, -MICRO, -PRO, -LR, -NANO, AF60-LR

Model WAVE-AP by Ubiquiti Networks

Mechanical
Dimensions	284 x 156 x 76 mm (11.2 x 6.1 x 3")
Weight	1.3 kg (2.9 lb)
Enclosure material	Aluminum alloy, UV stabilized polycarbonate
Mount material	Stainless steel, UV stabilized polycarbonate
Pole mount diameter	35 to 60 mm (1.4 to 2.4") on pipe outer diameter
Wind loading	87 N at 200 km/h (20 lbf at 125 mph)
Weatherproofing	IPX6
Hardware
Processor	Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory	DDR3L 512 MB
Networking interface	(1) 1/2.5 GbE RJ45 port
Max. power consumption	24W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply	48V DC, 0.65A, 2.5 GbE PoE adapter (Included)
Supported voltage range	44–54V DC 22–27V DC
GPS	Yes
Button	Factory reset
LEDs	Power, Ethernet, GPS, Link
Ambient operating temperature	-40 to 60° C (-40 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Software
Operating mode	PtMP access point
Ubiquiti specific features	Wave AI, discovery protocol
Services	UISP, ping watchdog, NTP client, SNMP
Tools	Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey *FW version 3.3.0 and later.
Network	Bridge mode
Application requirements	UISP web: Version 2.2.11 and later UISP mobile iOS™: Version 2.25.1 and later UISP mobile Android™: Version 2.27.5 and later
System
Total throughput	5 Gbps (2.5 Gbps duplex)
Supported clients count	24* *FW version 3.3.0 and later.
Max. range	Connecting to a Wave Pro: up to 6 km Connecting to a Wave Long-Range: up to 6 km Connecting to a Wave Nano: up to 4 km Connecting to a Wave Pico: up to 0.9 km
Encryption	WPA2-PSK (AES)
RF
Operating frequency*	57–71 GHz *Depends on regulatory region.
Channel bandwidth	2160, 1080, 540* MHz *FW version 3.3.0 and later.
Operating channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
Modulation	16QAM, QPSK
Antenna gain	20 dBi
Polarization	Vertically linear
Beamwidth	Azimuth: 3 dB 90° Elevation: 3 dB 7°
Electrical downtilt	0°
Back-Up RF
WiFi standard	802.11ax (WiFi 6)
Operating frequency* US/CA Worldwide	U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region.
Channel bandwidth	20, 40, 80 MHz
Modulation	BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain	13.5 dBi
Polarization	Dual-linear
Beamwidth	Azimuth: 6 dB 90° Elevation: 6 dB 25°
Cross-pol isolation	10 dB
Electric downtilt	0°
LEDs
Power	Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
Ethernet	Flashing blue: Ethernet traffic detected
GPS	Blue: receiving at least(4) GPS satellite signal
Link	Blue: 60 GHz link White: 5 GHz link
